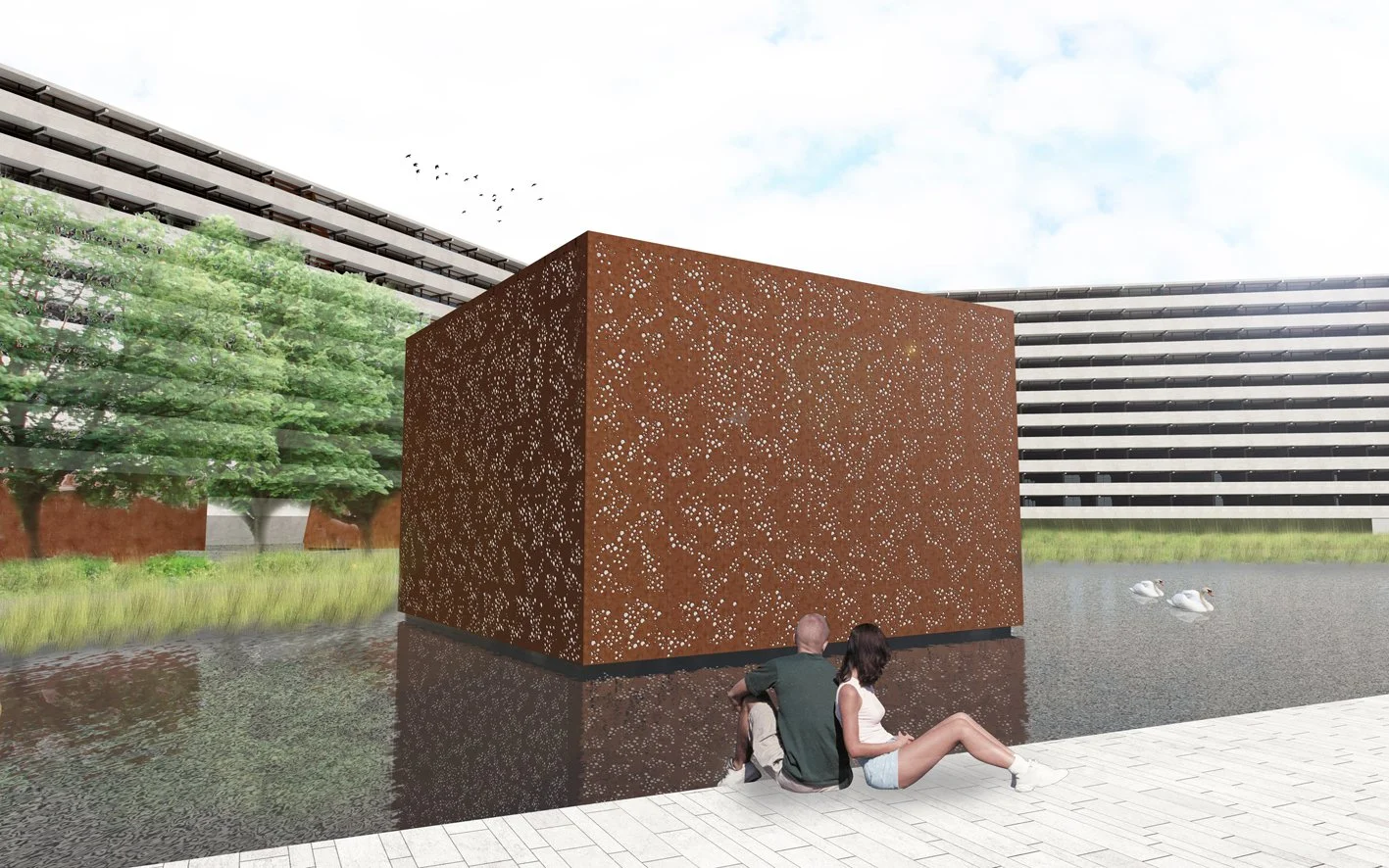

Prayer Cube

Submerged Mosque

  • Type: Community, concept

    Location: Bijlmermeer, Amsterdam

    Status: Complete

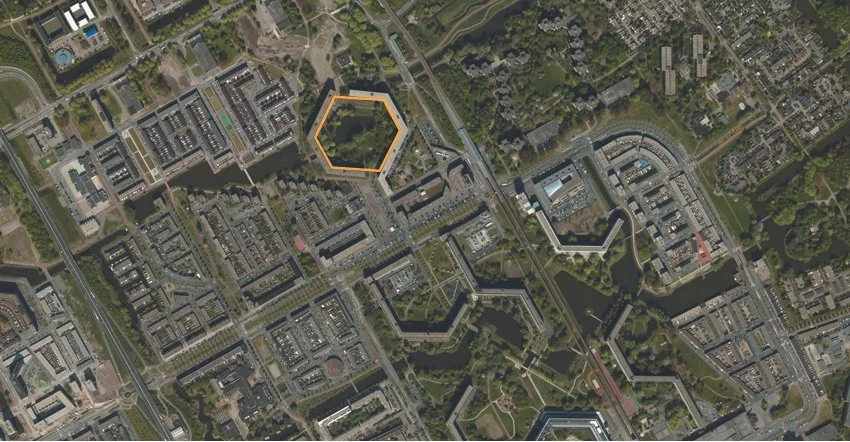

Aerial site plan of the Submerged Mosque proposal designed by SOCA

Aerial site plan

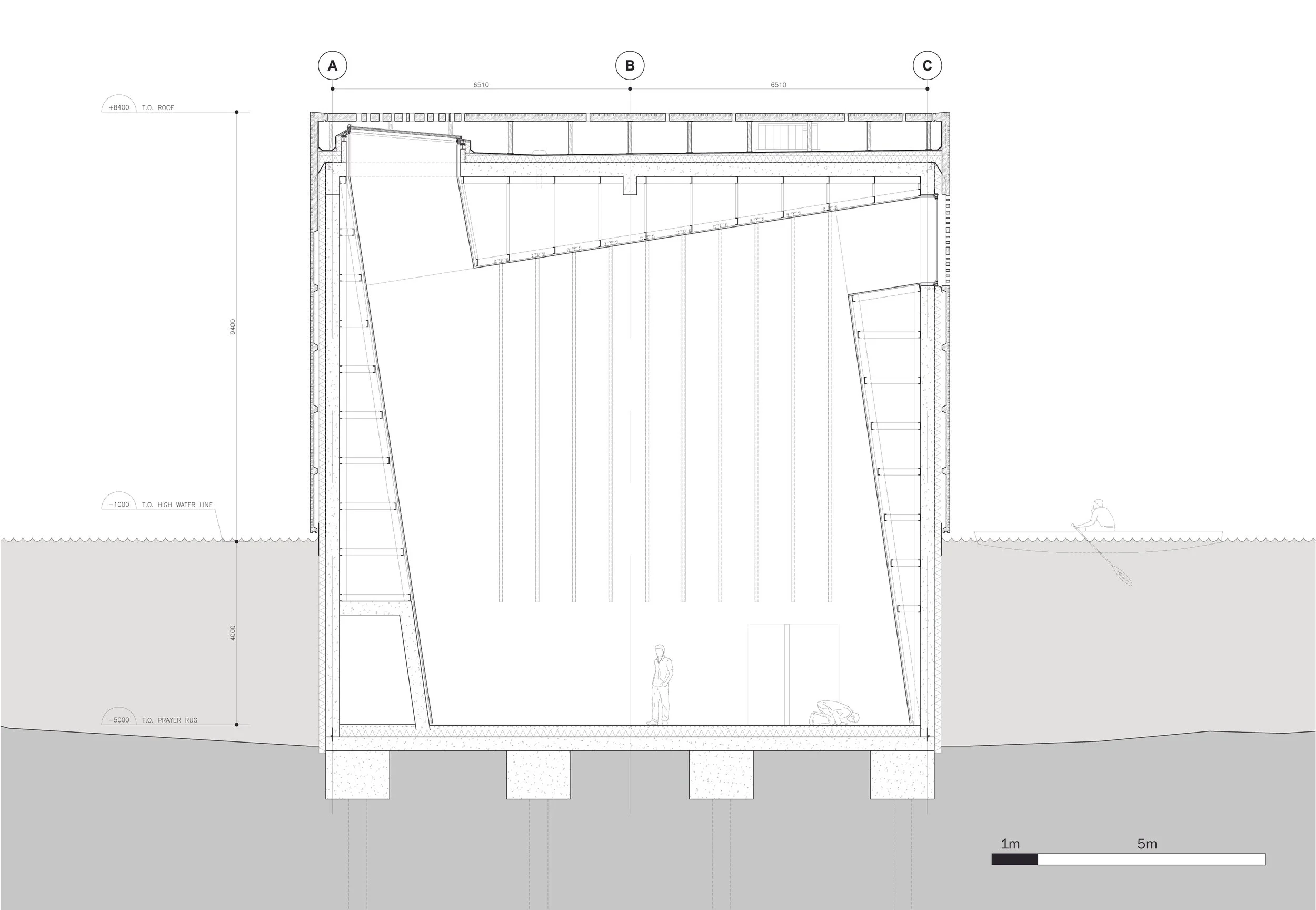

Detail section of the Submerged Mosque proposal designed by SOCA

Detail section of prayer space

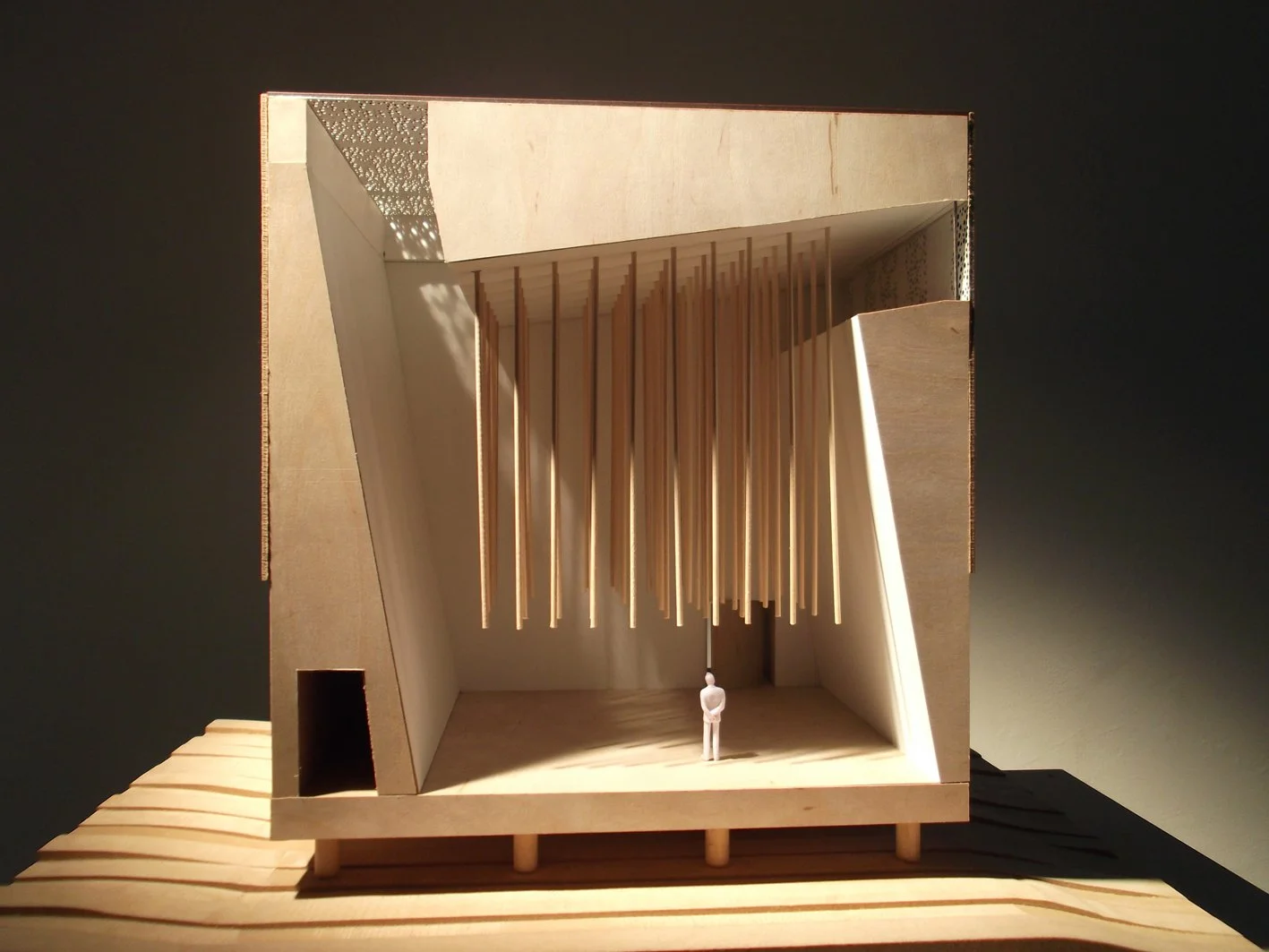

Sectional model of prayer room for the Submerged Mosque proposal designed by SOCA

Sectional model of prayer space

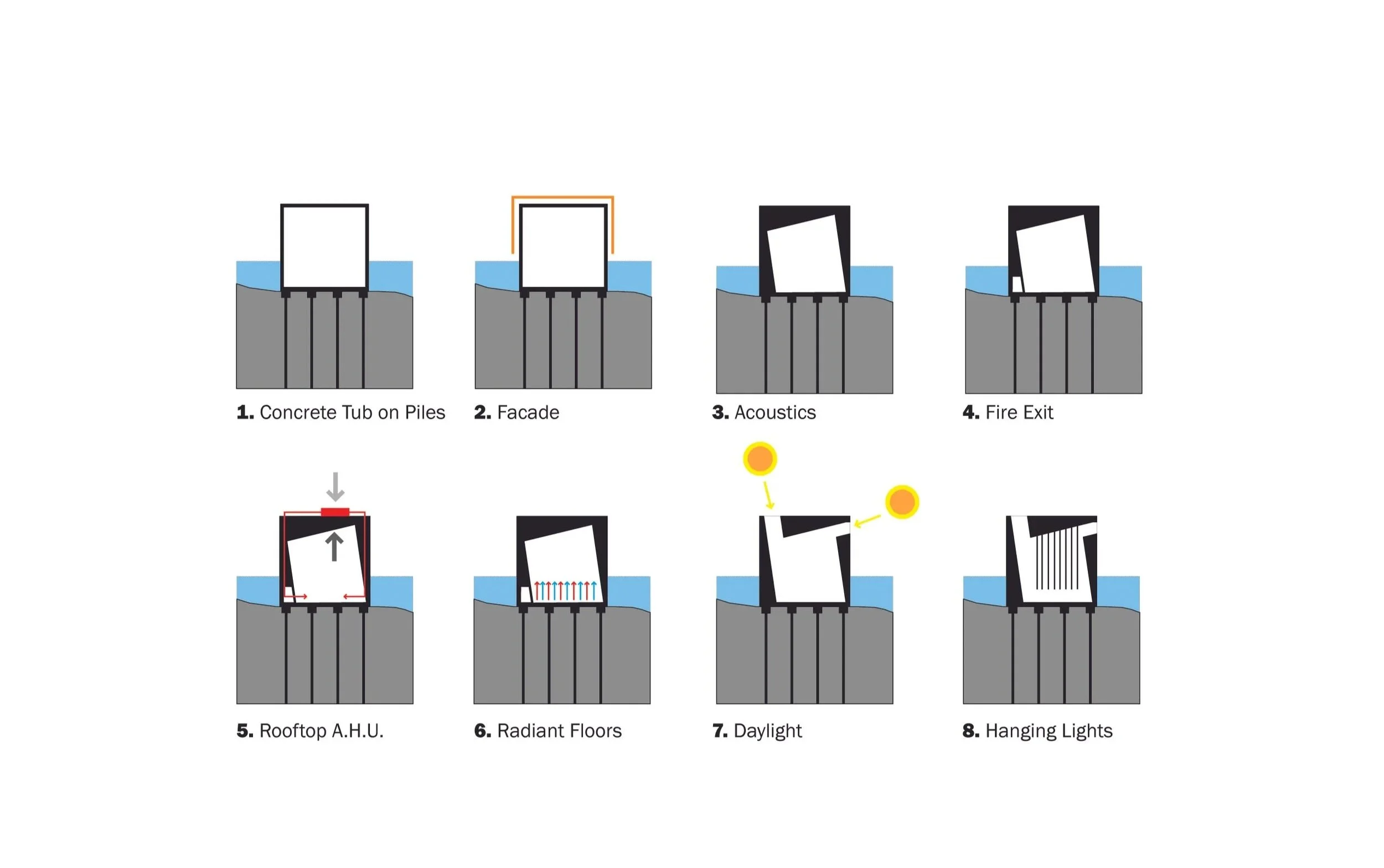

Formal diagram of the Submerged Mosque proposal designed by SOCA

Formal diagram

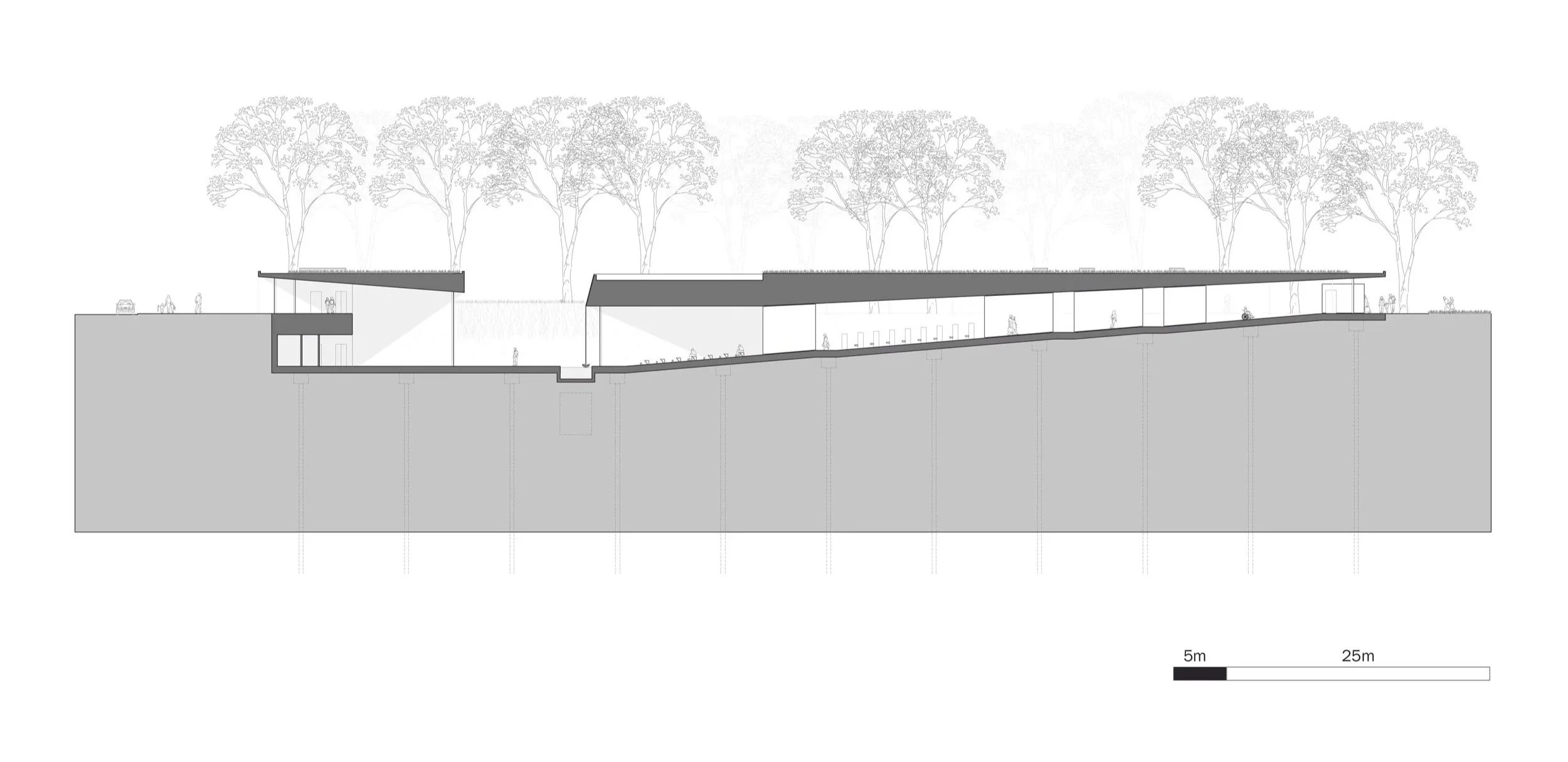

Long section of the Submerged Mosque proposal designed by SOCA

Sectional drawing of main building

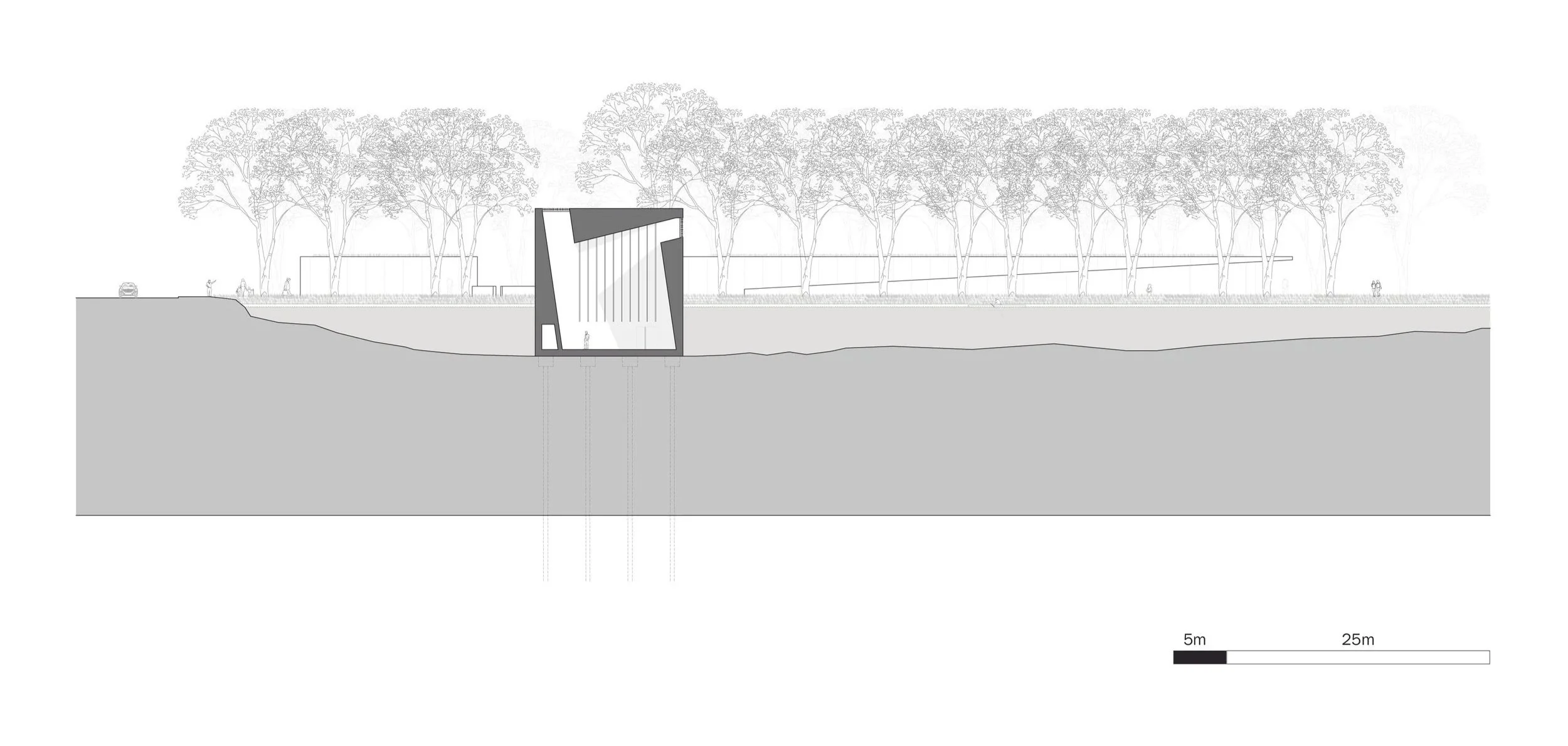

Prayer room section of the Submerged Mosque proposal designed by SOCA

Sectional drawing of prayer space in context



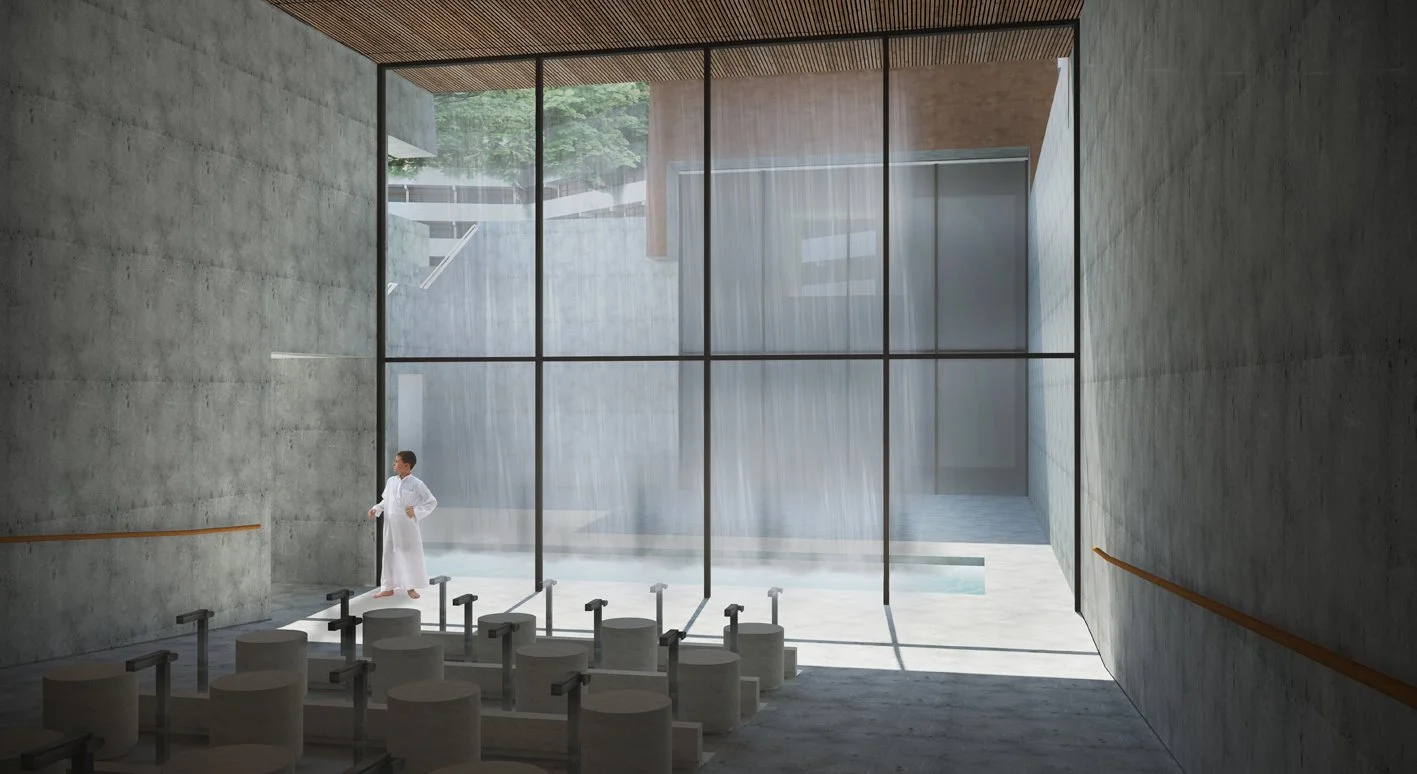

Ablution space render of the Submerged Mosque proposal designed by SOCA

Render of ablution space

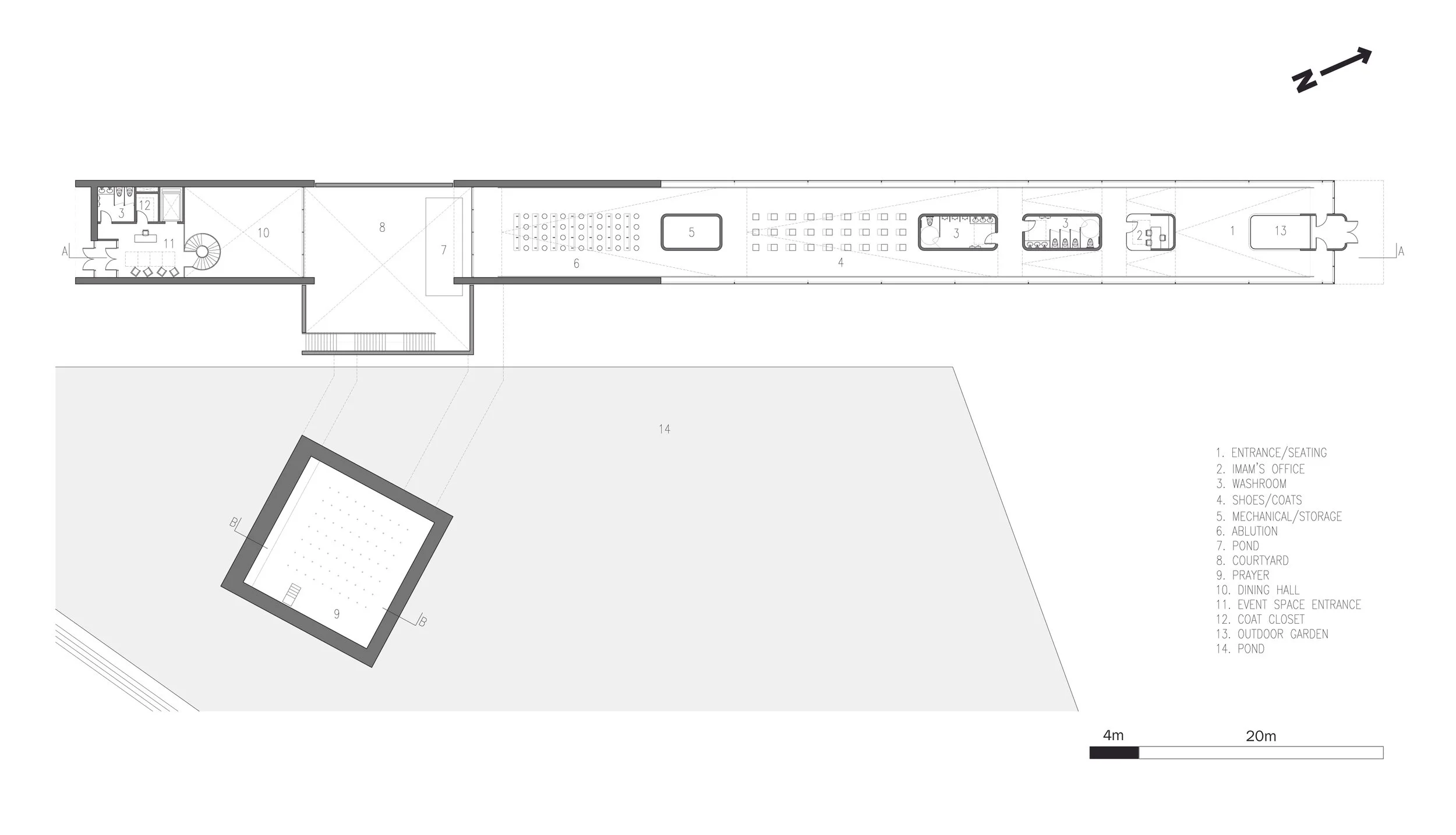

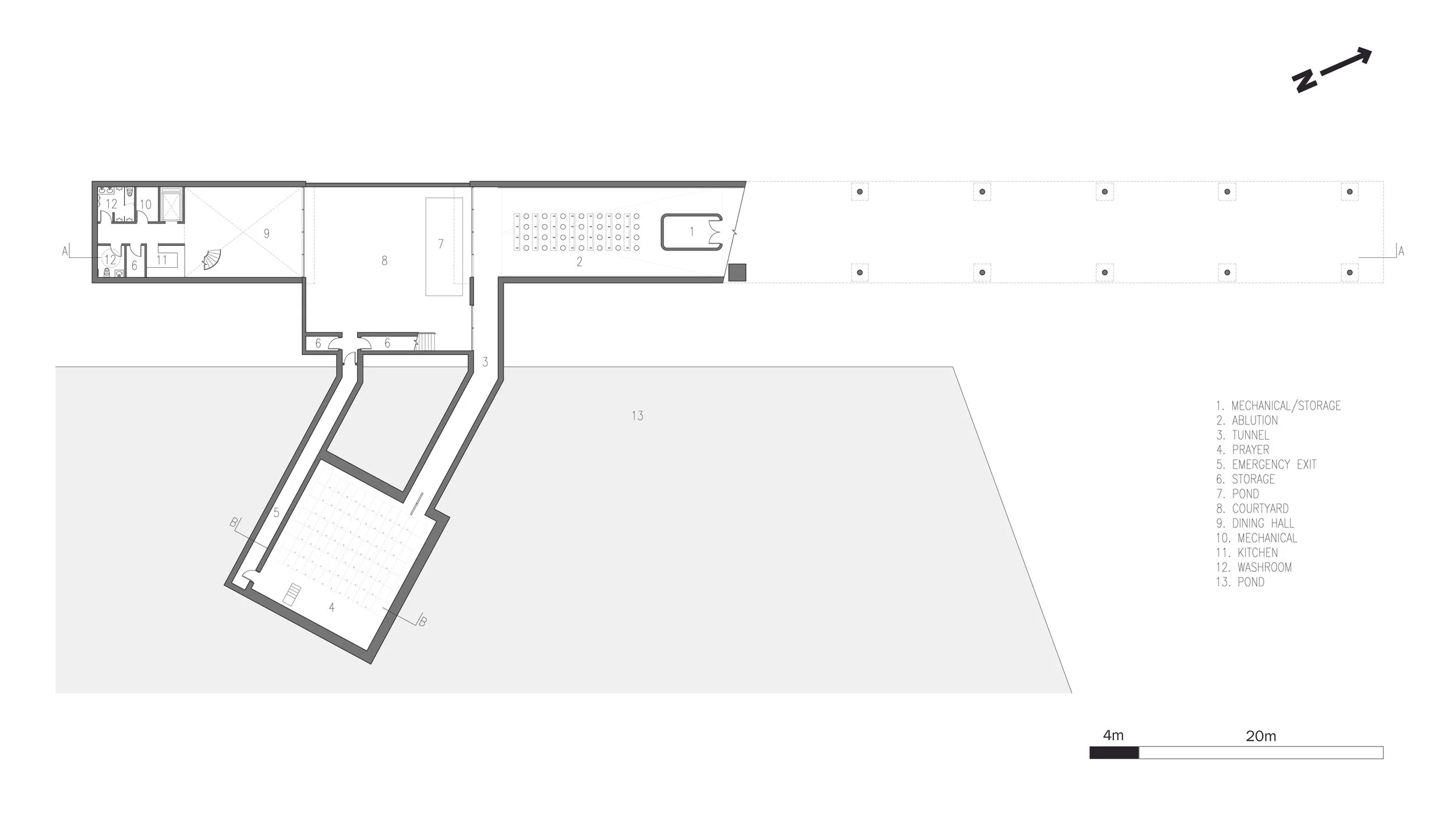

Ground floor plan of the Submerged Mosque proposal designed by SOCA

Ground floor plan

Level 2 plan of the Submerged Mosque proposal designed by SOCA

Level 2 plan



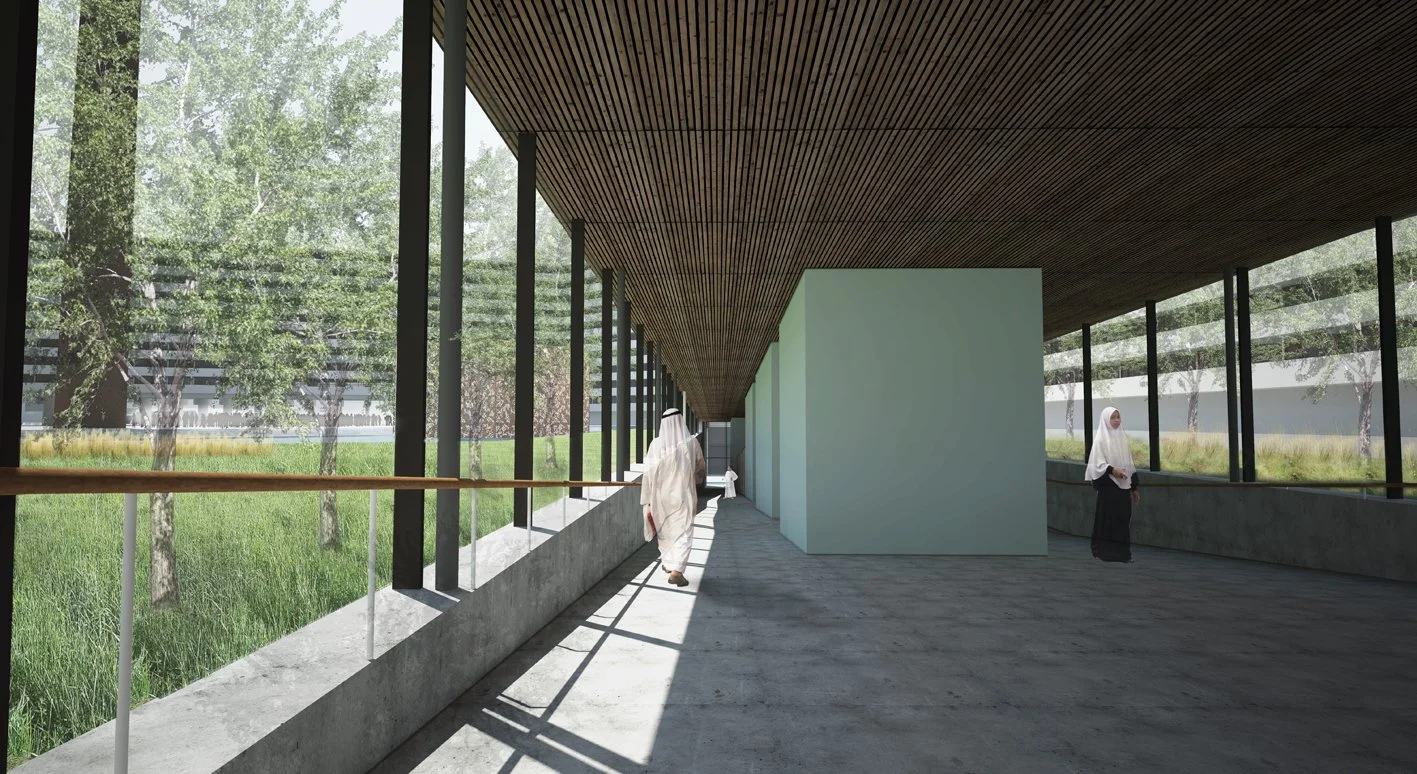

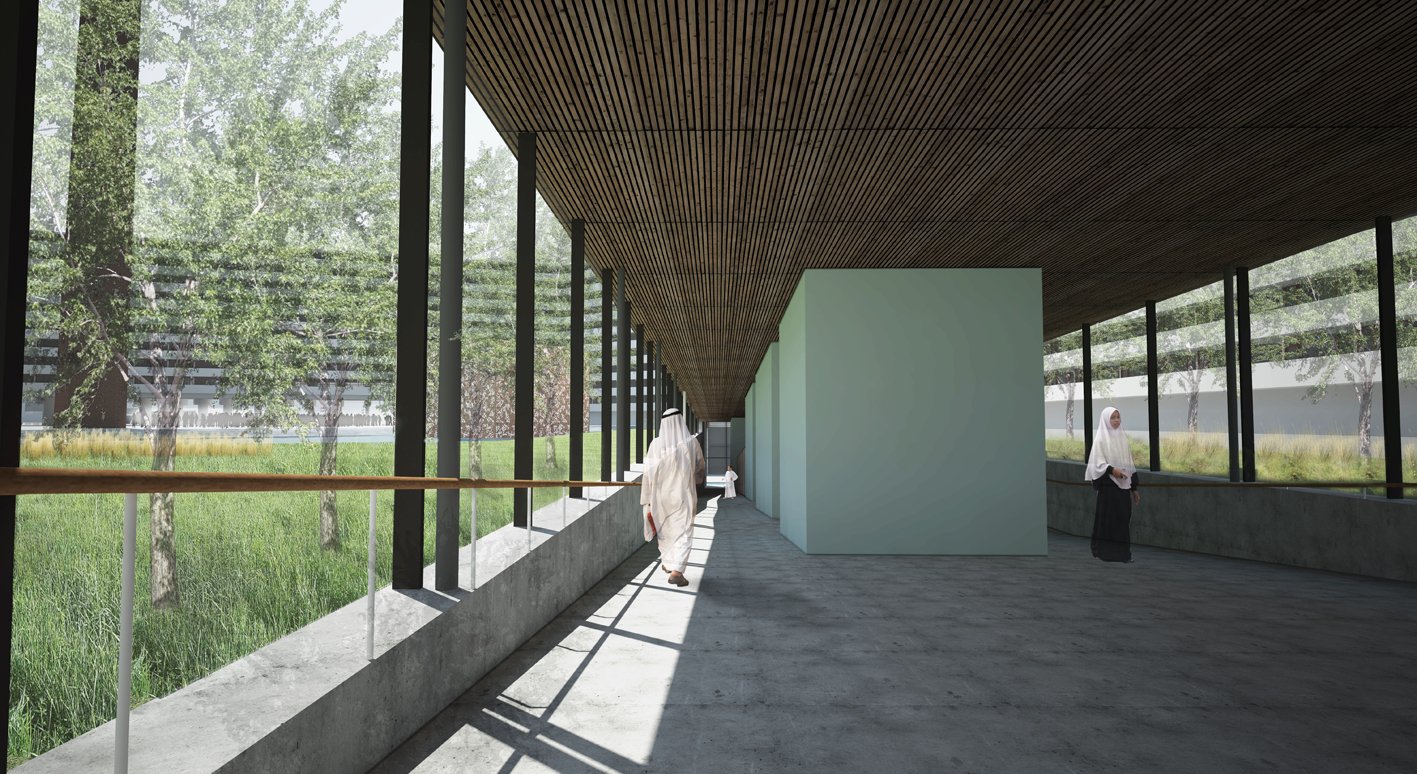

Passageway render of the Submerged Mosque proposal designed by SOCA

Render view of passageway
